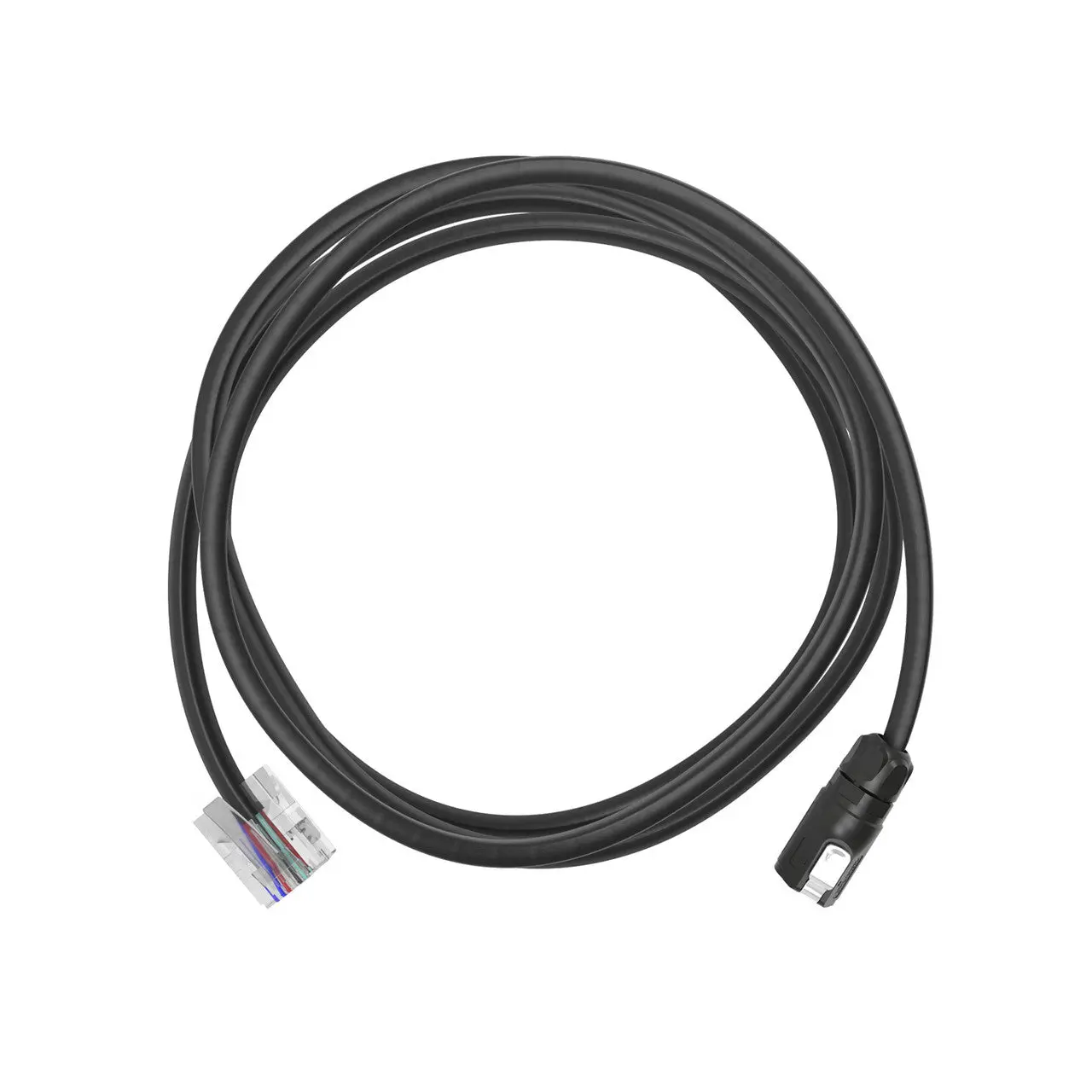

LP16 Plug (7-Pin) to RJ45 20Ft Communication Cable
DESCRIPTION

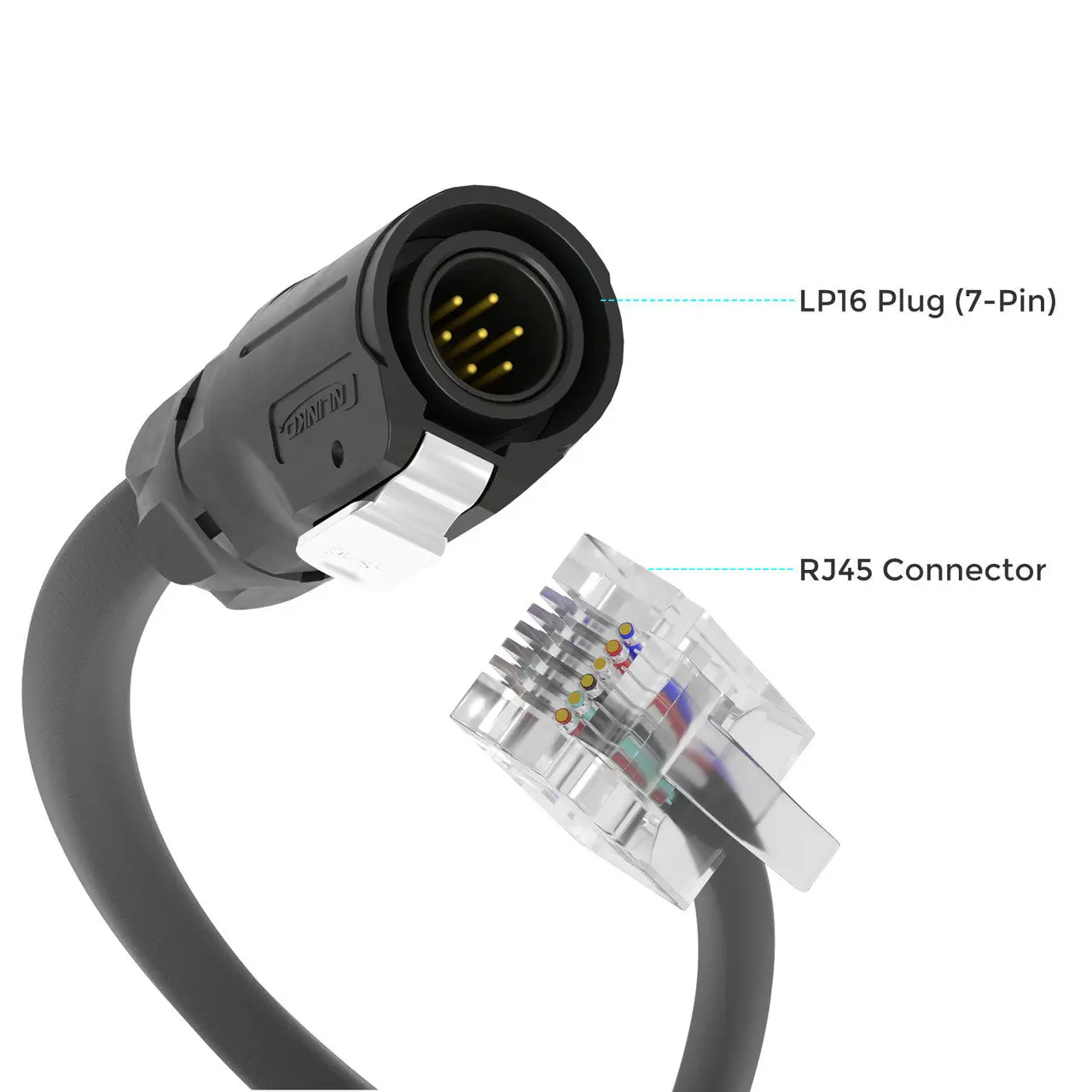

【Add All-in-One Monitoring and Control to Your REGO System】 One end of the communication cable has a standard RJ45 connector to connect your Renogy ONE RJ45 communication port, and the other end has a professional 7 Pin LP-16 connector, which can be connected to the CAN terminal of your REGO series products. The Renogy One command center is going to provide you with a full view of your REGO system, monitor and control every REGO device and even other smart devices in your system from only one screen.
【Plug&Play Operation】 The quick plug design of the 7 Pin LP16 Plug allows one-hand plug/unplug, just tap to release, ensuring quick and secure connections.
【Excellent Performance】 The wire is made with UL-compliant 28AWG high-purity oxygen-free tinned stranded conductors, twisted in pairs, ensuring maximum conductivity. The contact core of the terminator plug uses 3µm gold plating guaranteeing stable and efficient electrical performance all the time.
【Durable Design 】 The terminator plug adopts high-strength structural materials, a pressure-resistant structure design, can withstand greater vibration and shock, good insulation, low creep, and anti-aging. IP65-rated outdoor waterproof performance satisfies the high-quality performance required under harsh situations.
【Safety and Environment Friendly】 All materials of the terminator plug are RoHS compliant, preventing the risks posed to human health and the environment.

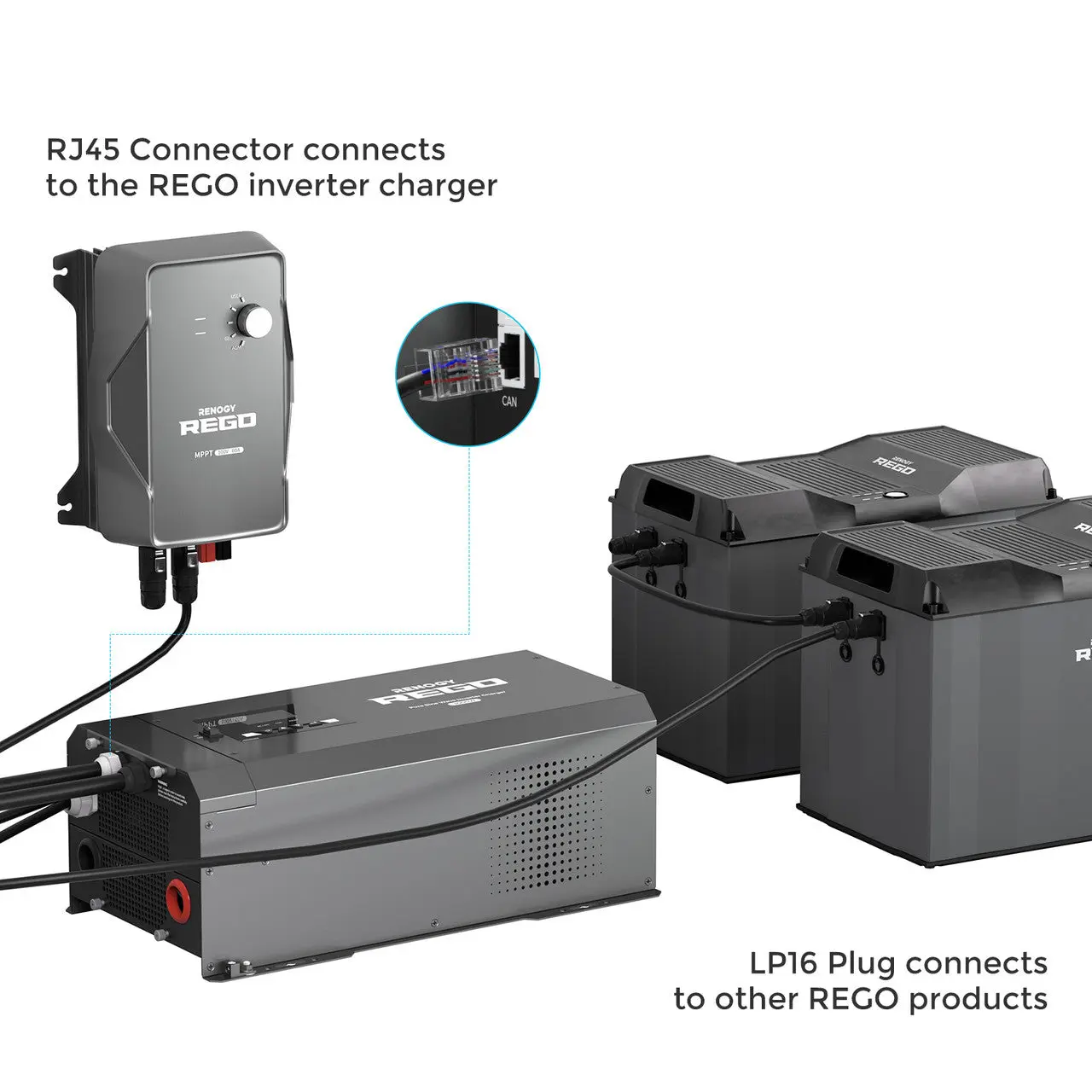

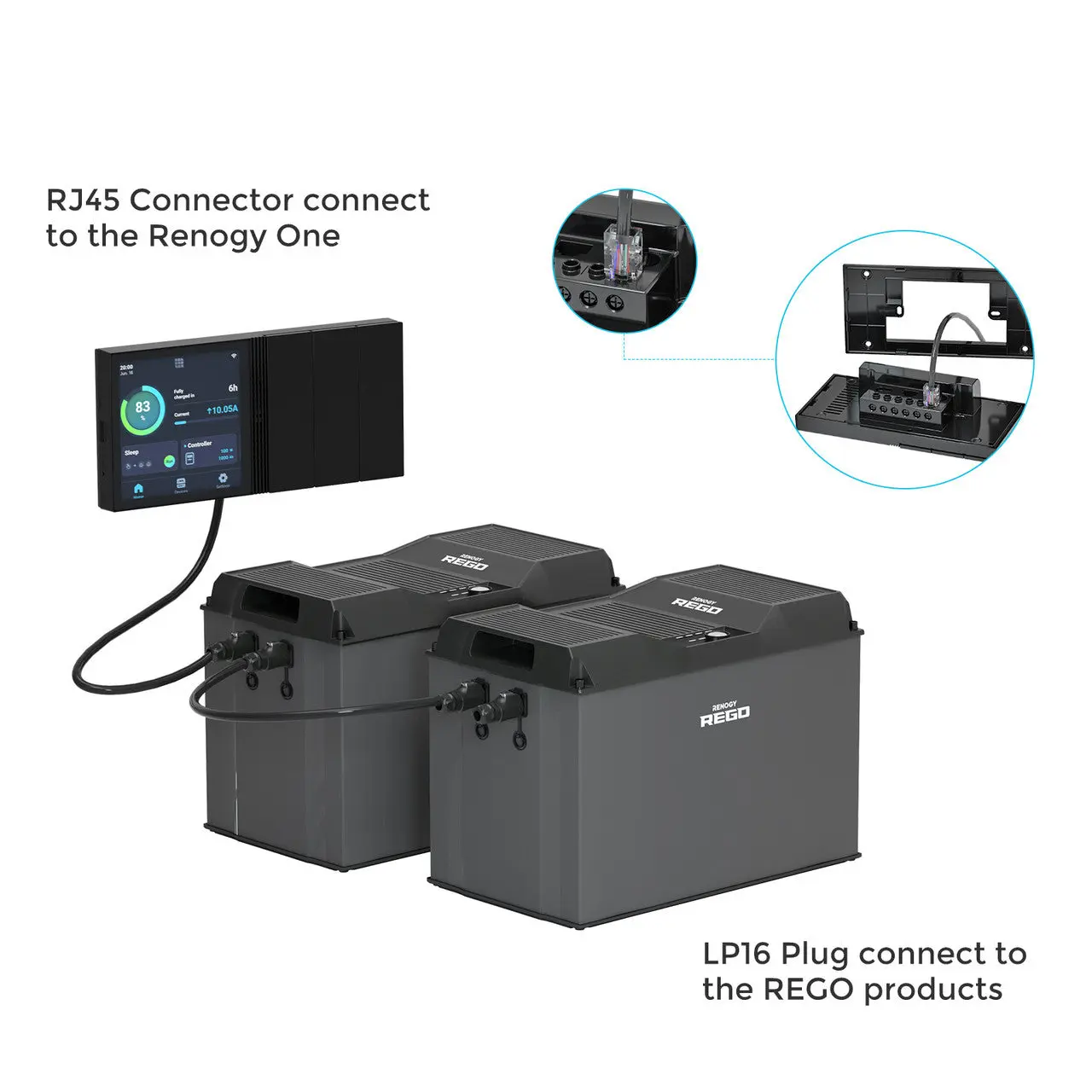

This LP16 Plug (7-Pin) to RJ45 Communication Cable is used to implement the communication connection between Renogy REGO series products and the Renogy One M1 all-in-one panel. One end of the communication cable has a standard RJ45 connector to connect your Renogy ONE RJ45 communication port, and the other end has a professional 7 Pin LP-16 connector, which can be connected to the CAN terminal of your REGO series products. The Renogy One command center is going to provide you with a full view of your REGO system, monitor and control every REGO device and even other smart devices in your system from only one screen. Supports remote parameter setting and 24-hour online monitoring, knowing the status of your system at all times for total peace of mind.
Package Includes
|
LP16 Plug (7-Pin) to RJ45 20Ft Communication Cable
1 x |
ELECTRICAL DATA
Specification

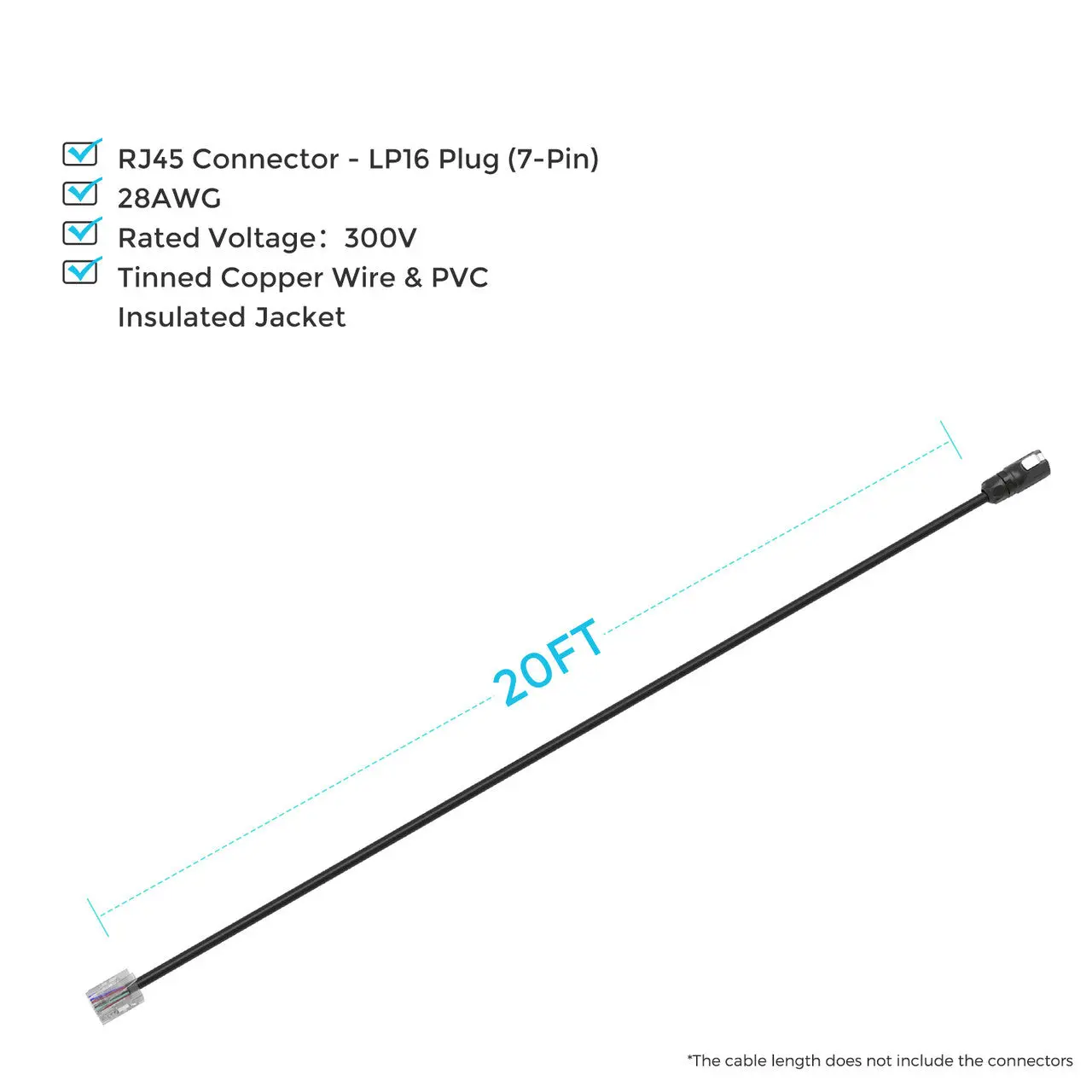

| Length: 20Ft | Wire Gauge: 28AWG*2P+3C |
| Rated Voltage: 300V | Baud Rate: ＞250kbps |
| Cable Material: Tinned Copper Wire & PVC Insulated Jacket | Terminal Type/Size: RJ45 Connector - LP16 Plug (7-Pin) |
| Temperature Rating: 80℃/176℉ |
GENERAL DATA
| Certification: UL，ROHS | Warranty: 1year |
1.If a user buys Renogy ONE and REGO products, should they connect Renogy ONE or REGO products first?
The connection has no priority, you can connect any device first
2.Do you connect the communication line first or power on first?
Power on first and then connect the communication line.
3.What is the difference between wired communication and wireless Bluetooth?
If you only need short-range monitoring of a single device, you can directly connect to the DC Home App via Bluetooth; if you need to communicate and program a remote vehicle system, you need to connect each product to the Renogy ONE by wire, and the Renogy ONE is connected via Wifi or cellular network DC Home App.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
